Intelligent Trunk Inductive Opening System When you find yourself holding things with both hands and inconvenient to open the trunk just use your foot to sweep the bottom of the bumper and the trunk will open easily.

Update Required To play the media you will need to either update your browser to a recent version or update your Flash plugin.

Product Features Release your hands and open the trunk door automatically with a kicking movement in a high sensitivity.
Easy to operate. Hidden and nondestructive installation. Convenient wiring.
Safe, reliable and has error proofing protection function.
Low power consumption, static current and nondestructive vehicle battery
Automatic light and buzzer warning.

Usage Mode

Carry the sensor key with you, and use your foot to make kicking movements at the bottom of the rear bumper (sensing signals through the upper and lower sensors)
The device will pass the algorithm identification and the trunk cover will open automatically.

The upper sensor (graph 3 below) detects the calf.
The lower sensor (graph 4 below) detects the instep.
The upper and the lower sensor cooperate and detect the complete footstep of the movement, and send the complete signal to the host.
In the case of staying in the detection area for a long time, or an external interference staying for a long time, the system will be blocked automatically for 10 minutes.

Product Features Functional MovementUse your foot approaches naturally and keeps a distance of 5cm. Make the kicking movement and return your foot to the original position. Movement RequirementsThe above-mentioned movement must be done in between of 200ms to 1s.
In the movement of kicking, both blue and red areas in the graph must be reached.

Product Parameters Product parameters / Tachograph

Induction Key Technical Parameters

Item	Parameters
Working Voltage	Standby Current
Standby Current	≦ 3uA
Working Current (Wireless Transmitting Instant)	8±2mA
Induction distance	≦1M
Working Temperature Range	-20～75℃

Host Technical Parameters

Item	Parameters
Working Voltage	DC 12V(10.8~16V)
Standby Current	0.2mA
Working Current	55±10mA
Working Temperature Range	-30~+70
Waterproof level sensor	IP67

Open the Era of Intelligent VehiclesIntegrate Technology into Lives of Intelligent Vehicles Become a leading and influential international company in the field of automotive components.

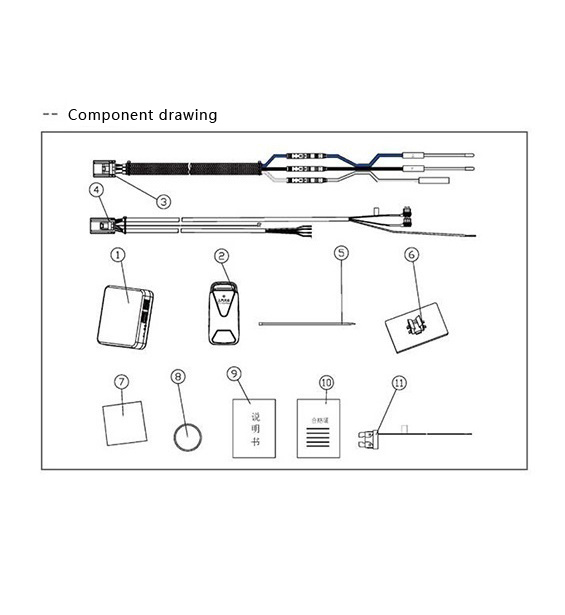

Detailed List

1.Host Box	1	individual
2.Induction Key	1	individual
3.Induction Antenna Group	1	strip
4.Power Line Group	1	strip
5.Bandage	10	strip
6.Fixed Clamp	8	individual
7.3M Host Backside Adhesive	1	individual
8.Battery	1	individual
9.Instructions	1	individual
10.Certificate	1	individual
11.Safety Insert (with tail)	2	strip
